Rogue R-3W Fold Back Wall Mount Rack

Rogue R-3W Fold Back Wall Mount Rack

Space Saving Power Rack, Made in the USA

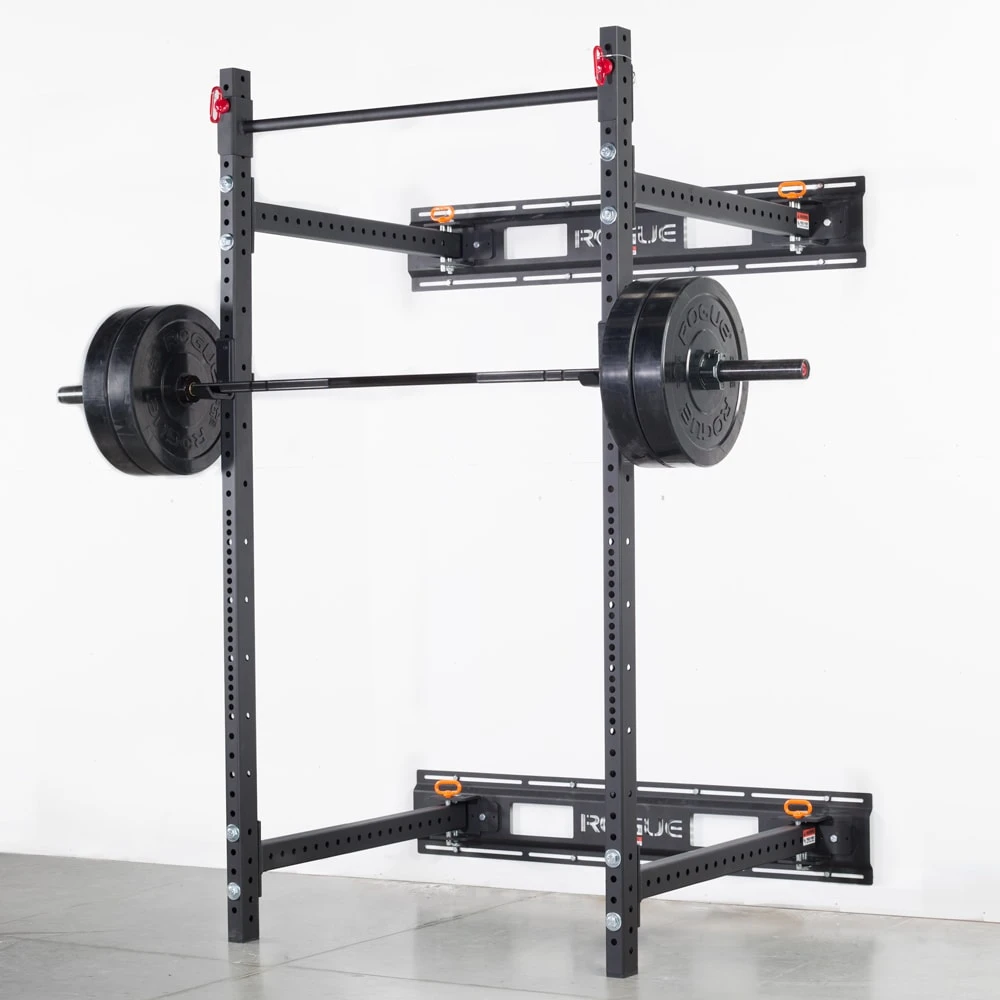

The goal with the R-3W was to develop a wall-mount unit that could be folded inward or outward for space efficiency, yet still offer the sturdiness of our standard Infinity Series racks. To achieve this, our engineering team developed a unique hinge-and-pin system that is both easy to install and rock solid. In use as a squat stand, pull-up rig, or power rack, the feel is miles beyond lighter fold-back setups that use thinner steel.

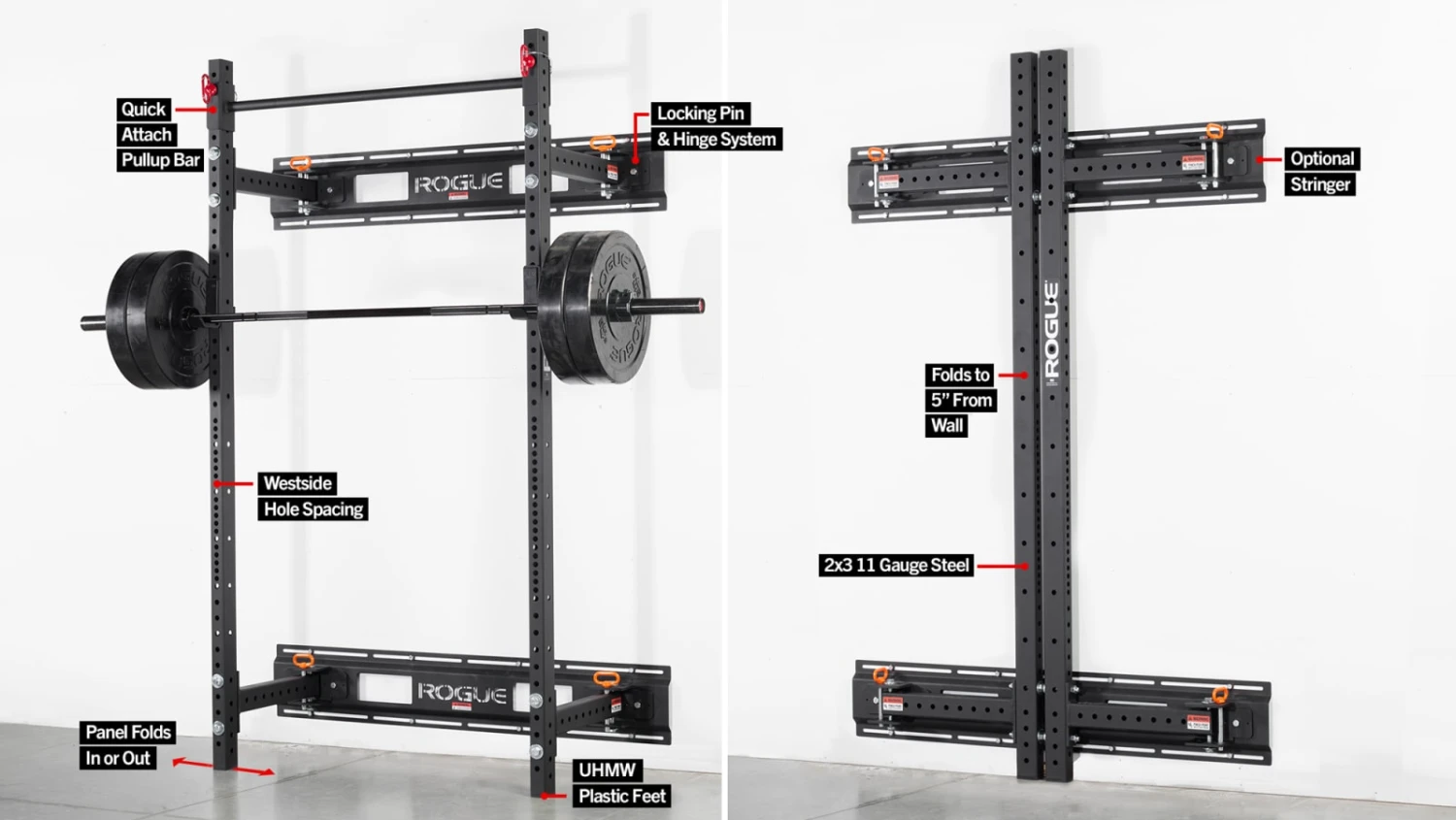

The R-3W Fold Back Rack features a pair of 2×3″ 11 gauge steel uprights, Westside hole spacing through the bench/rack pull zone, and 2″-on-center spacing above and below. It’s compatible with most Infinity Series accessories, and is available in two depths: 20.5″ and 40.5″. The system also comes standard with a quick-attach pull-up bar, a set of Infinity J-cups, 4 mounting brackets for installation, and 4 detent pins to lock the rack into either the open position (ready for use) or closed position (against the wall). A set of UHMW plastic caps are attached to the base of each upright to protect your floor and allow the sides of the rack to freely swing in and out.

Optional Fold Back Rack Stringers

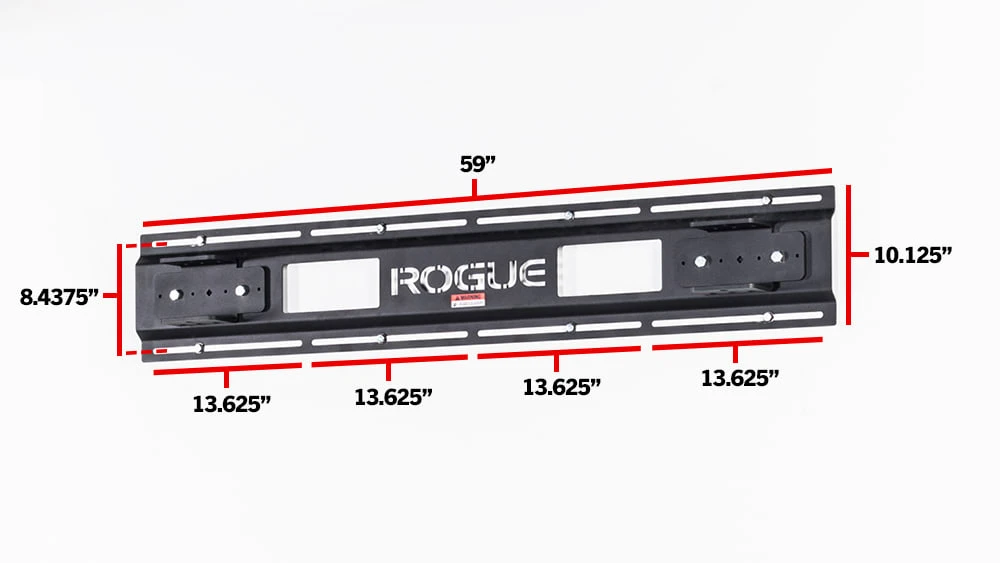

For optimal support, Rogue recommends adding a pair of stringers to your Fold Back Rack order via the menu on this page. Our custom-compatible stringers are made from laser-cut and formed 11-gauge steel and finished in our texture black powder coat. They measure 59″ long x 10-1/8″ tall, and extend 13/16″ off the mounting surface when installed. One stringer is used to mount the top hinge brackets and the other for the bottom hinge brackets. You can learn more about our Fold Back Rack Stringers in the Key Features section below.

ATTN: Spotter Arm Use: How and what the rack is secured to on the wall should be checked by a contractor. Depending on the wall type and how it was secured will depend on if the wall can take that stress.
